High Air Pressures Mission 60 DTH Drill Bit Flat Face Steel Wash Resistance

Product Categories
Changsha Tianhe Drilling Tools and Machinery Co.,Ltd.
Contact Now

High Air Pressures Mission 60 DTH Drill Bit Flat Face Steel Wash Resistance

Brand Name : TeamWhole

Model Number : Mission60　Button bit

Certification : ISO9001:2008

Place of Origin : Changsha, Hunan, China

MOQ : 1pc

Price : Negotiation

Delivery Time : 15 Days After Payment

Packaging Details : Dth Bits Are Packed By Cartons Inner Side, and Outer is Plywooden

Application : Mining or marble quarry or water well drilling

Bit face : Center drop/Flat/convex/concave/double gauge face bits

Button shape : Spherical/Ballistic/parabolic/sharp/falt buttons

Hammer type : Middle/high air pressure dth hammer

After Service : Available

Flushing Hole : 2

Contact Now

High Air Pressures Mission 60 DTH Drill Bit Flat Face Steel Wash Resistance

Main products:

DTH (down the hole) hammers and bits with capacity of drilling holes from 2.5” to 40” (64mm-1020mm) in diameter, TH~TSK series high and low air pressure DTH hammer and bits, DTH drilling tools with large diameters for deep hole drilling, eccentric (ODEX) casing system and concentric casing system, reverse circulation hammers and bits, accessories of rock drills.

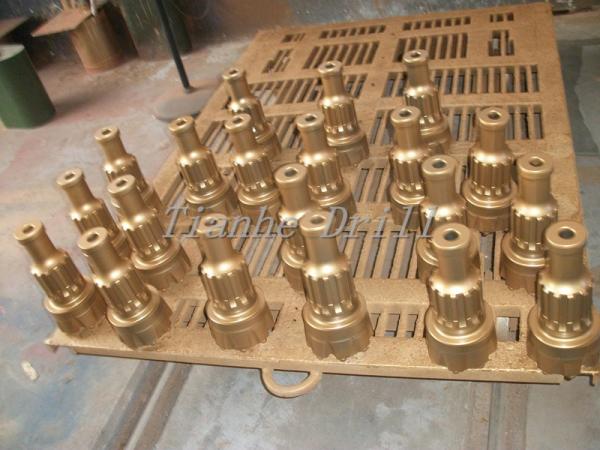

Products picture:

High Air Pressures Mission 60 DTH Drill Bit Flat Face Steel Wash Resistance

Specification:

Bit face, Button type

Diameter

( mm)

 Air hole Gauge Front

Weight

(kg)
Flat,Gauge Spherical, Front Semi-ballistic 165 2 18×7 16×6 18.6
Convex,Gauge Spherical, Front Semi-ballistic 165 2 18×7 16×6 18.6
Flat,Gauge Spherical, Front Semi-ballistic 171 3 18×9 18×11 19.6
Convex,Gauge Spherical, Front Semi-ballistic 171 3 18×9 18×11 19.6

Pakage:

High Air Pressures Mission 60 DTH Drill Bit Flat Face Steel Wash Resistance
